LS4: Key Features

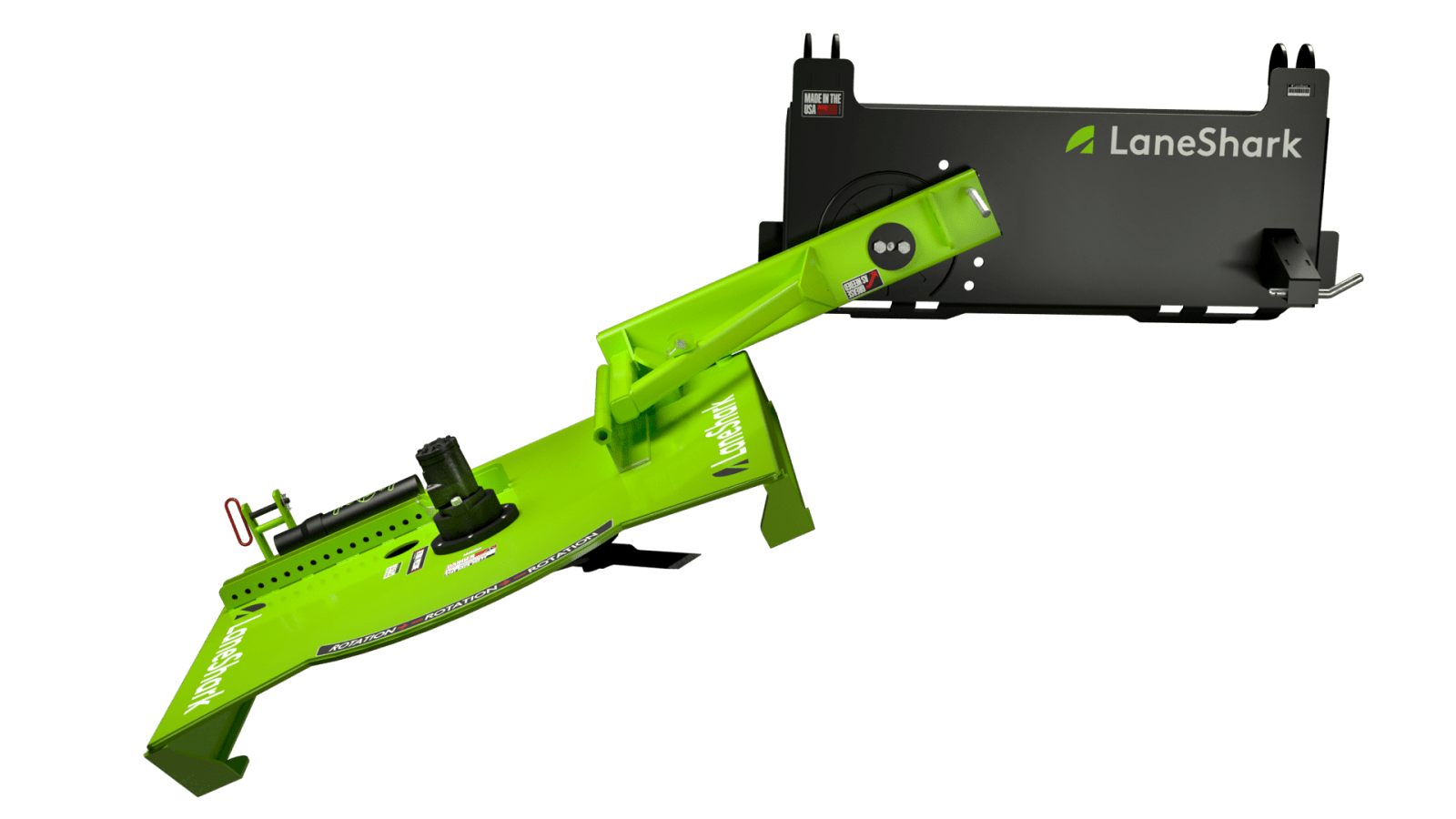

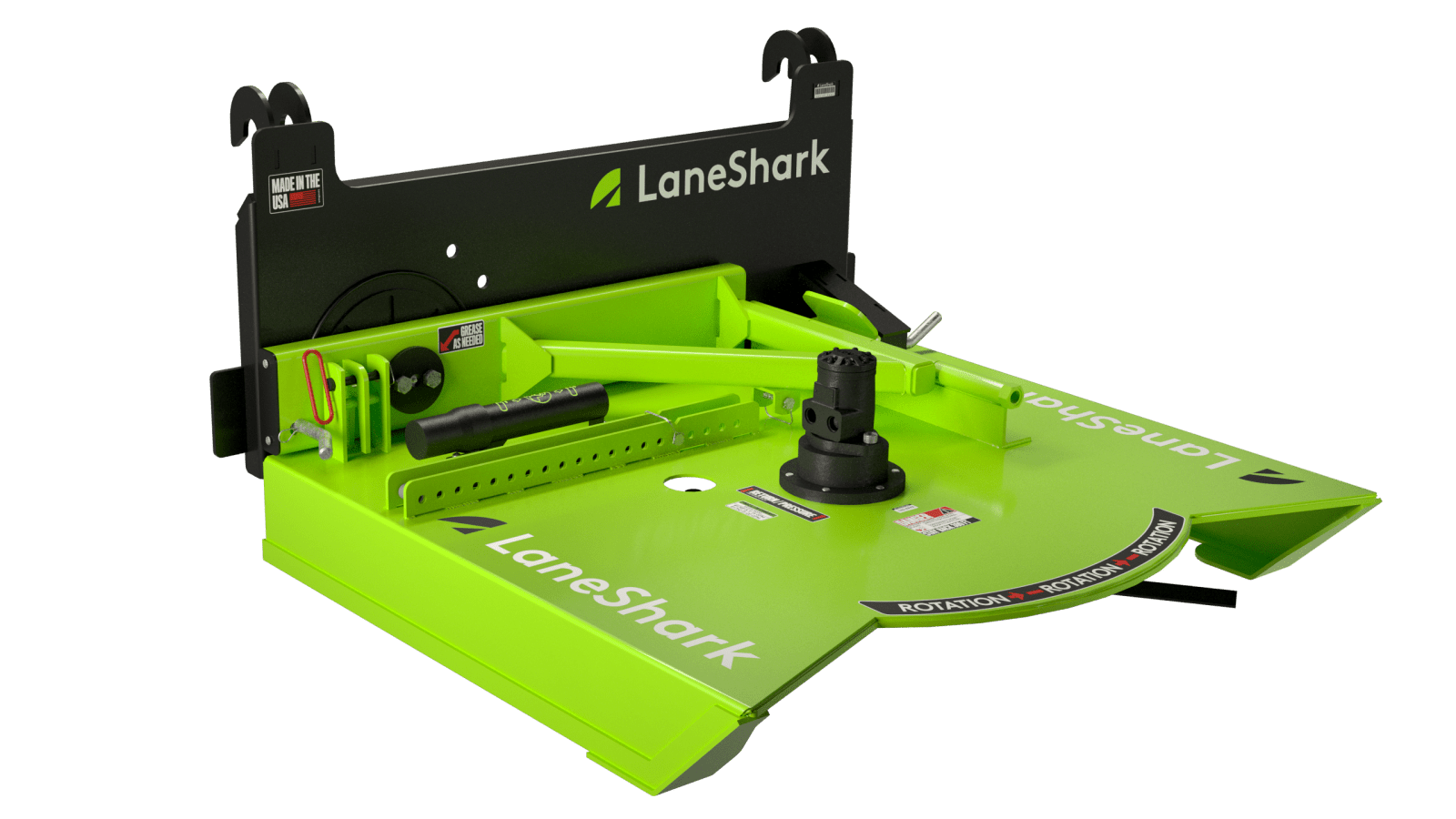

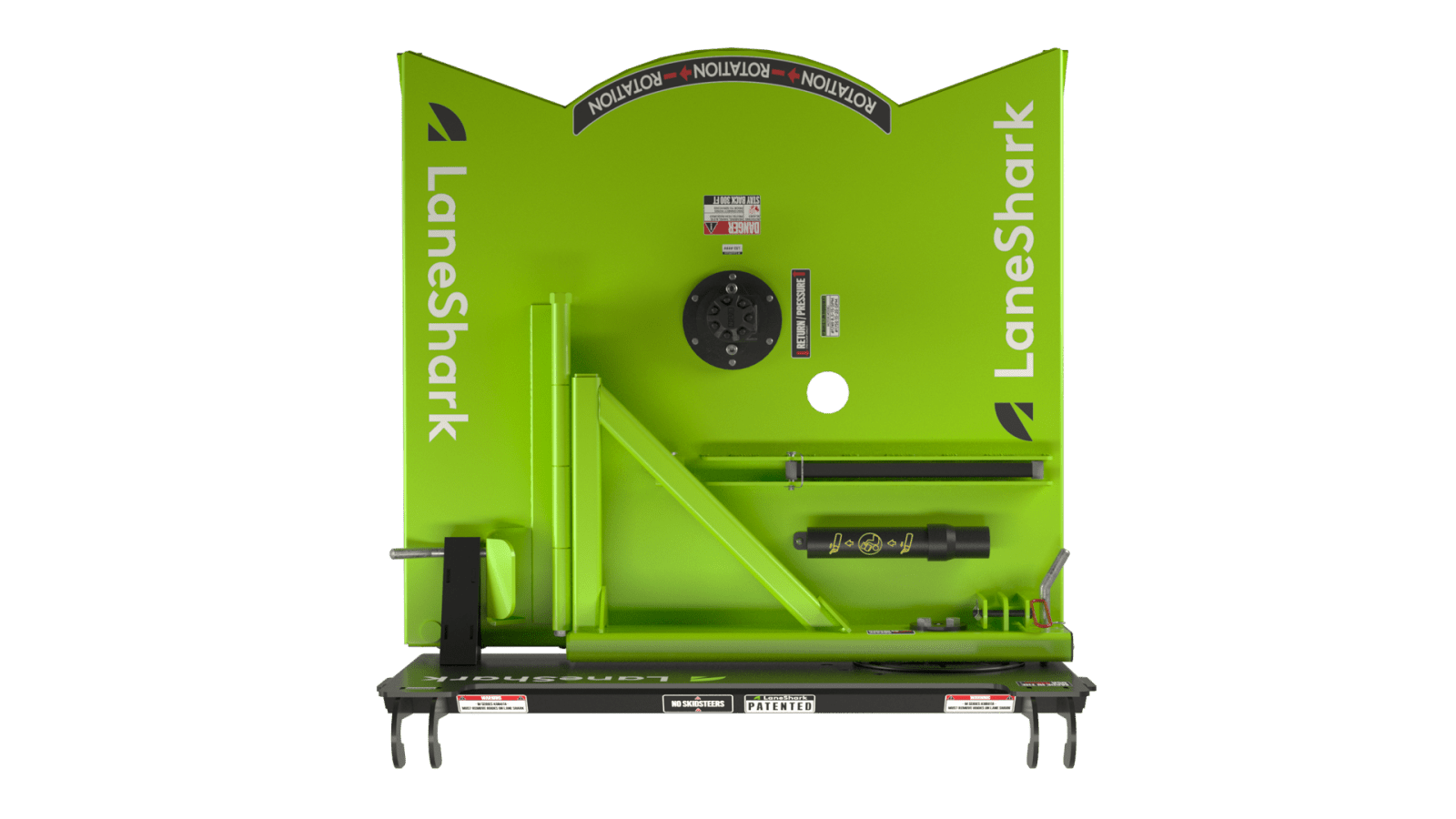

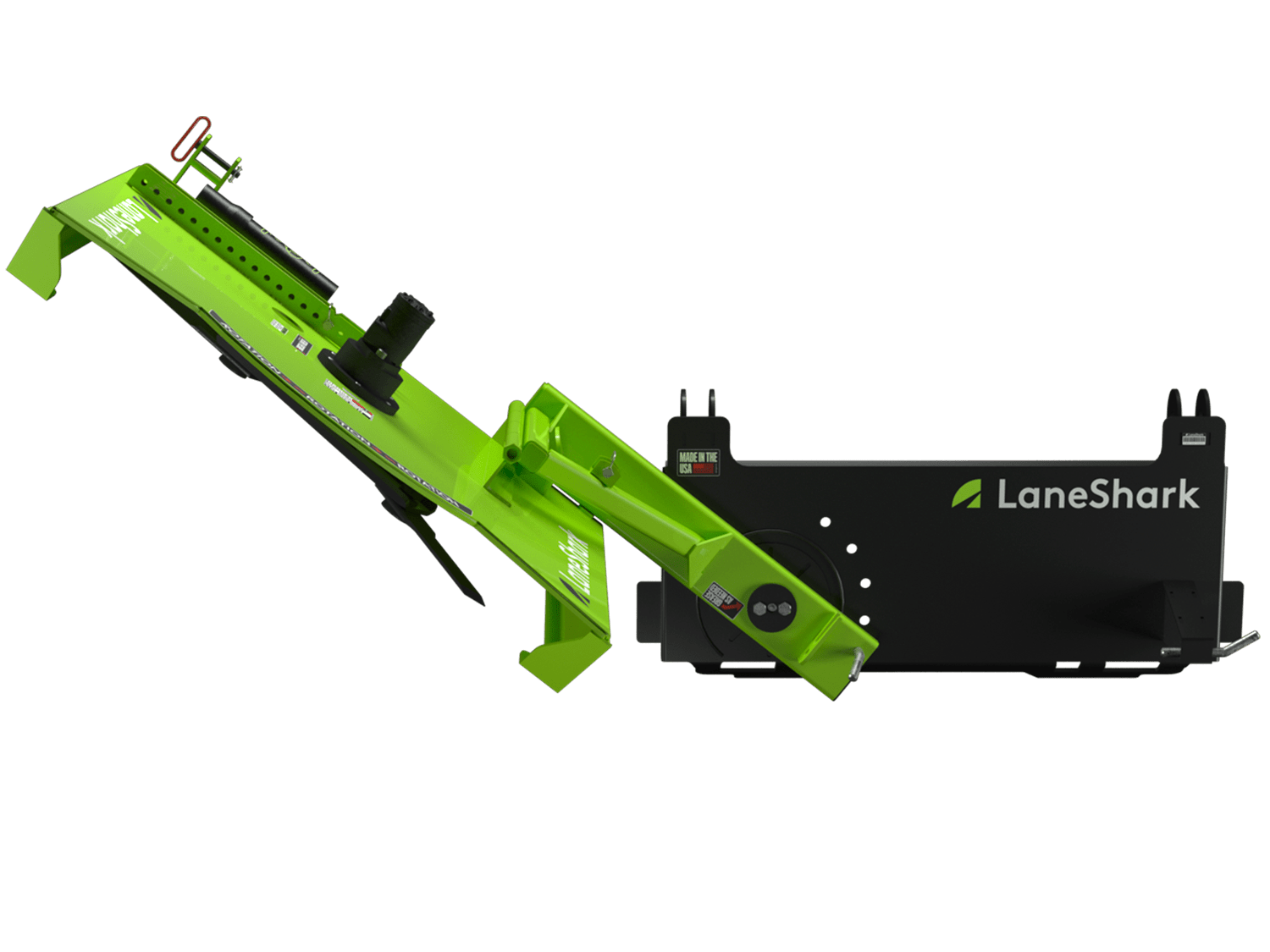

- The Lane Shark LS4 is a light duty rotary cutter designed to clear overgrown roadways, for light land management, and property maintenance.

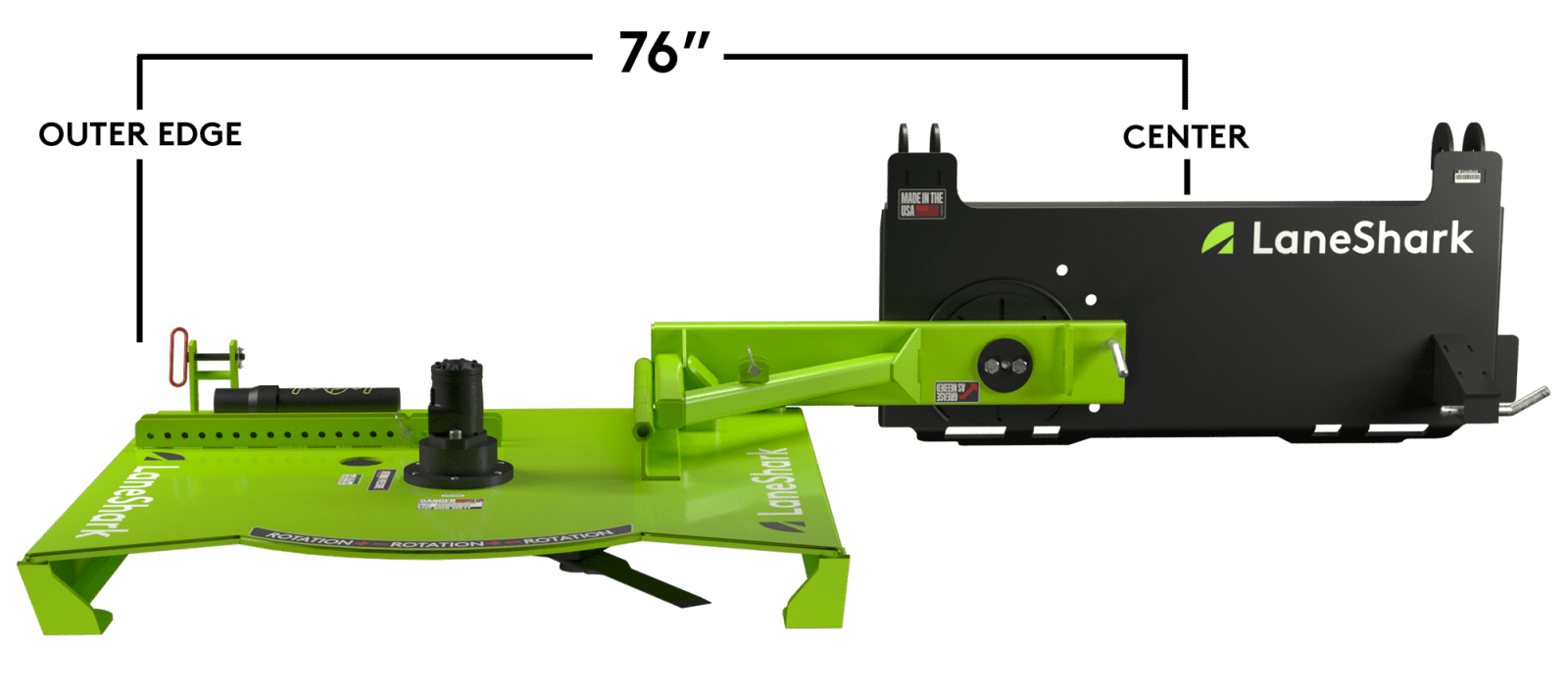

- Cutting width / cutting area of 44"

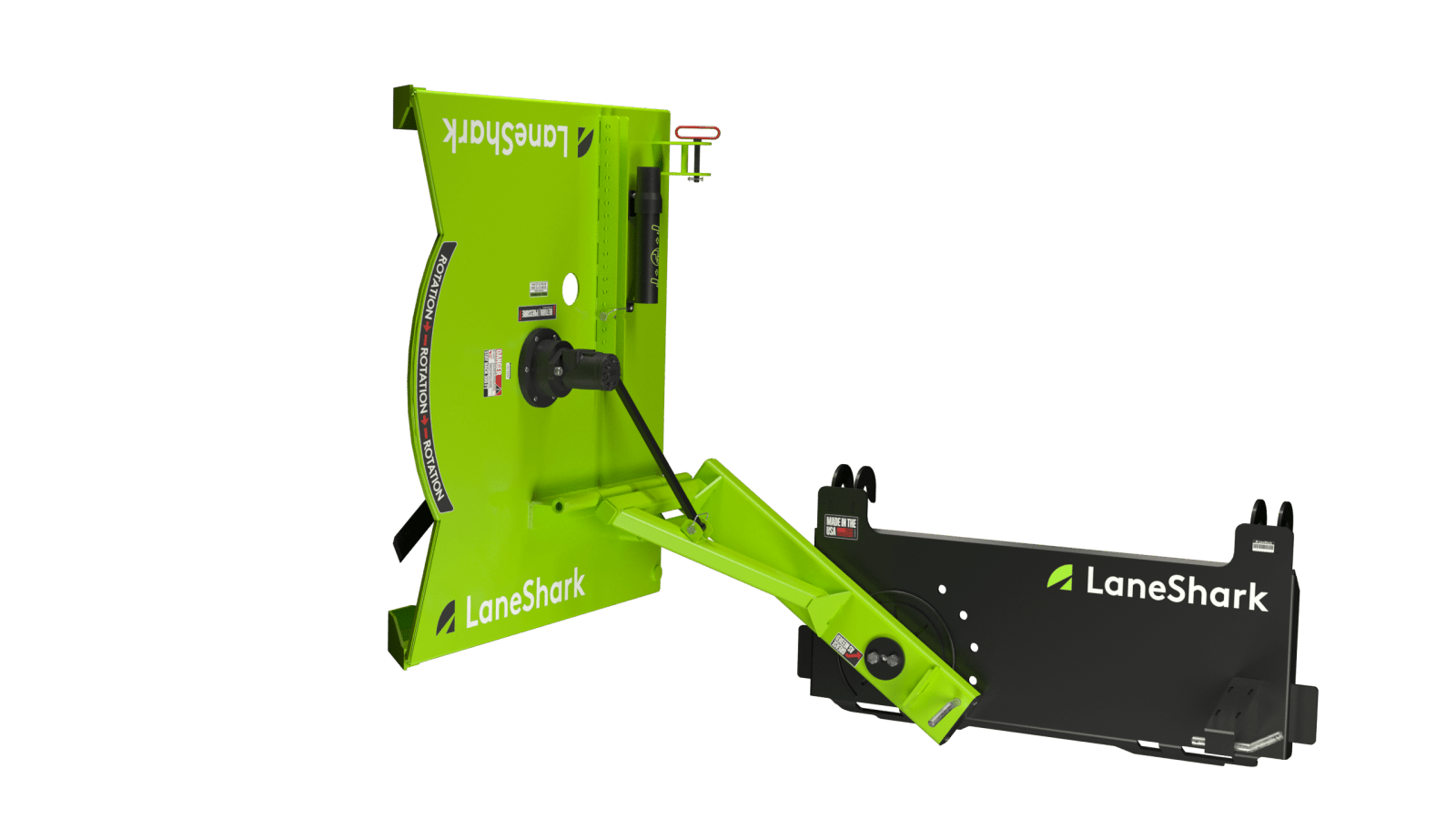

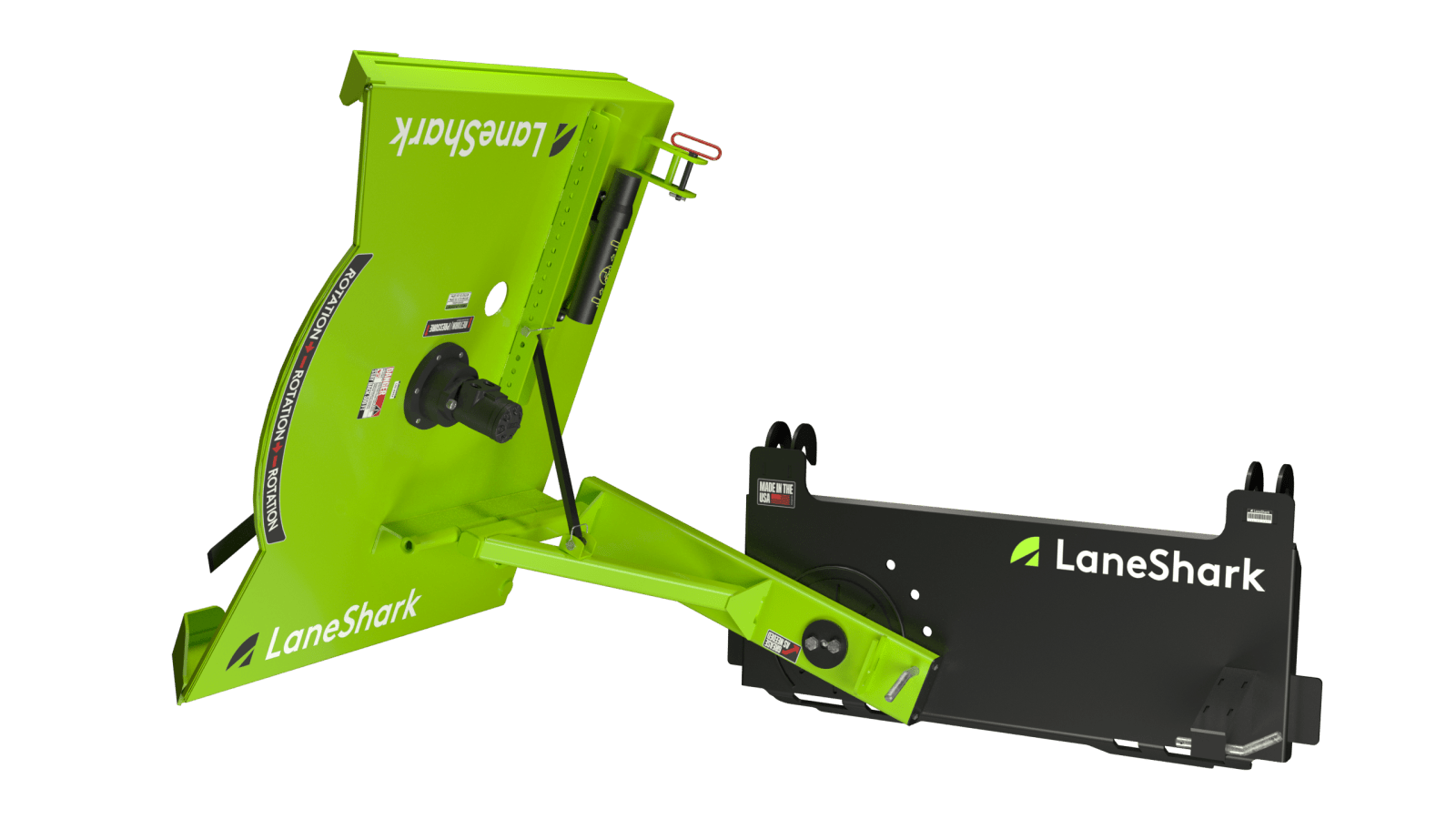

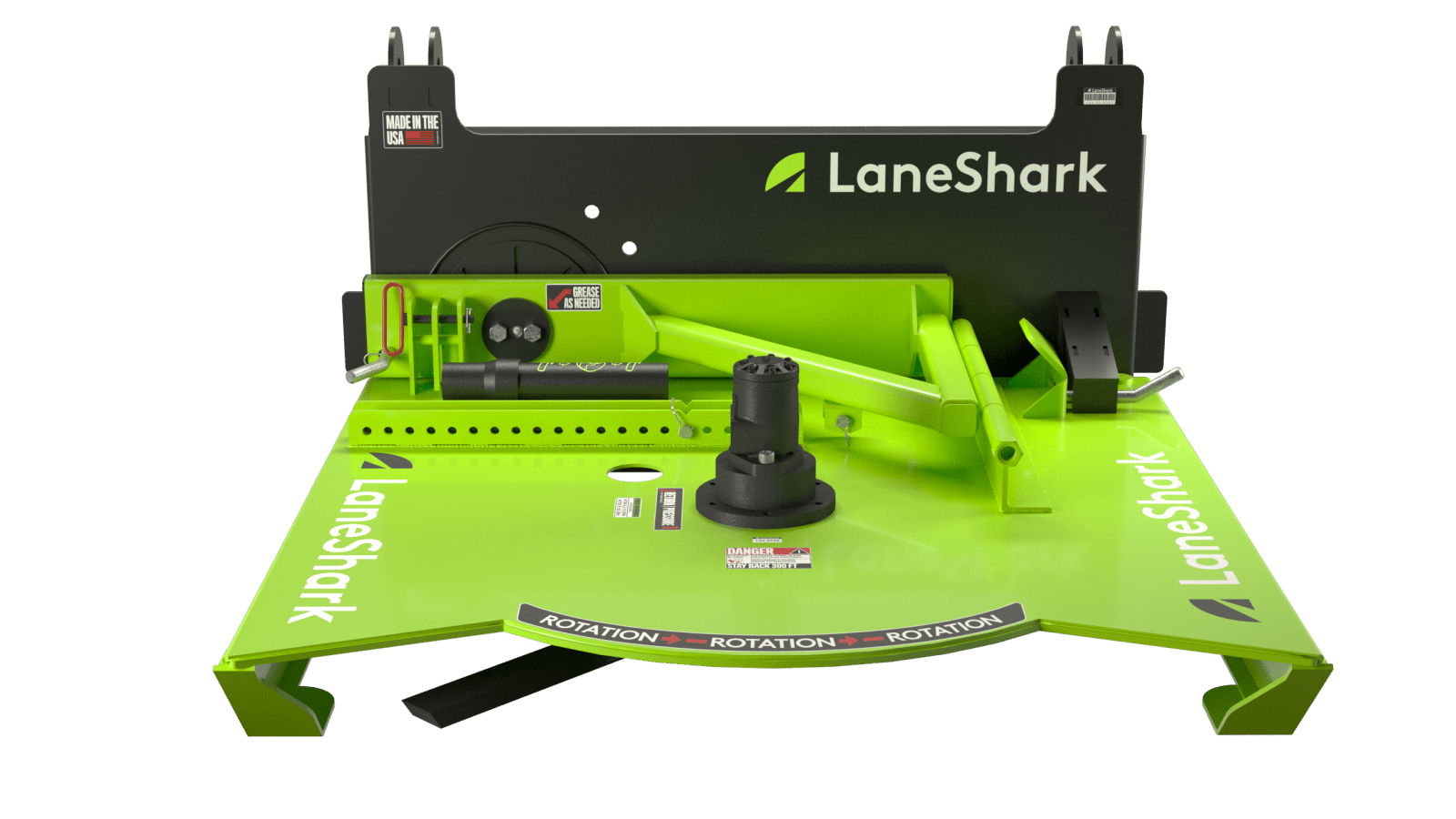

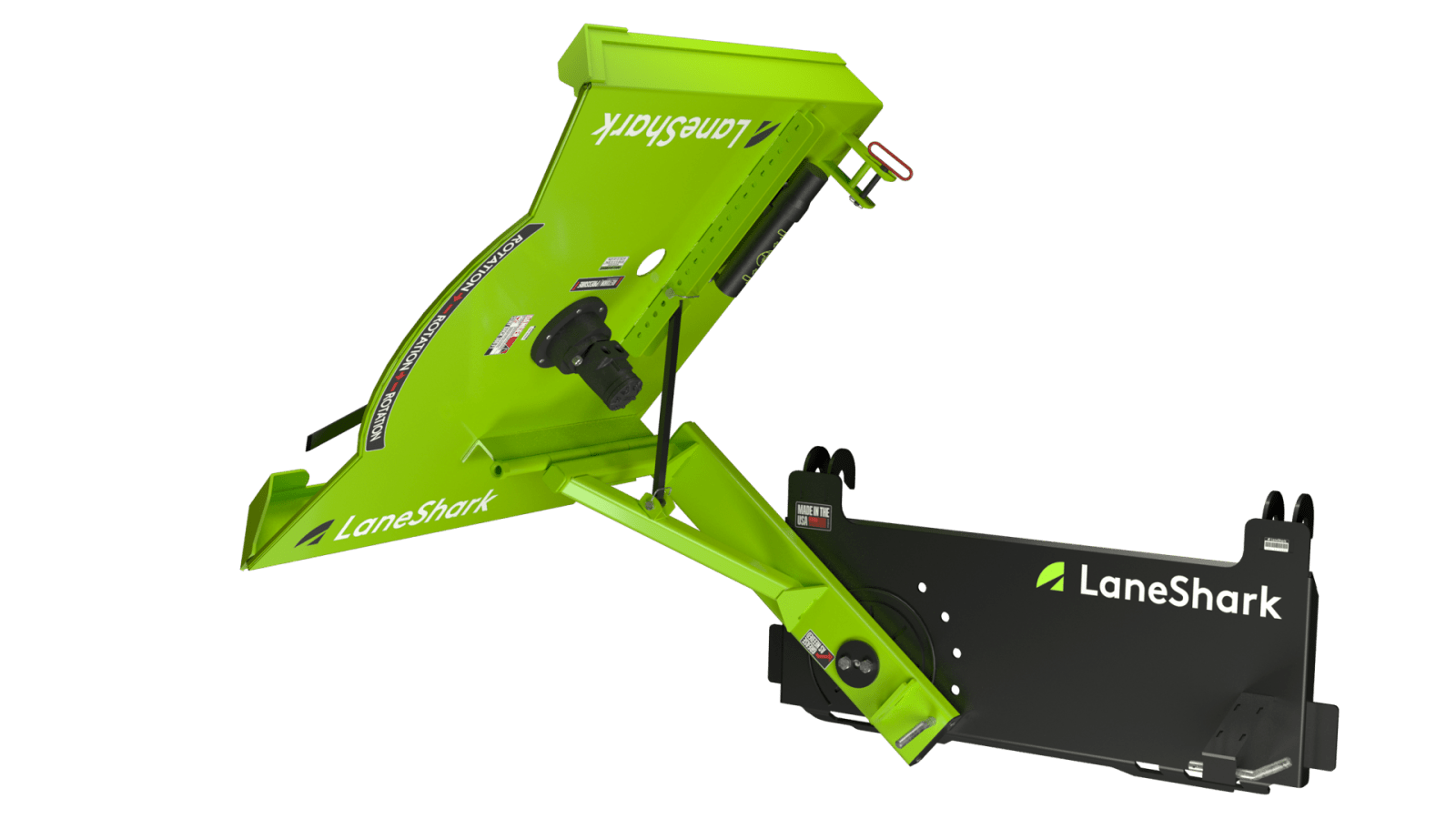

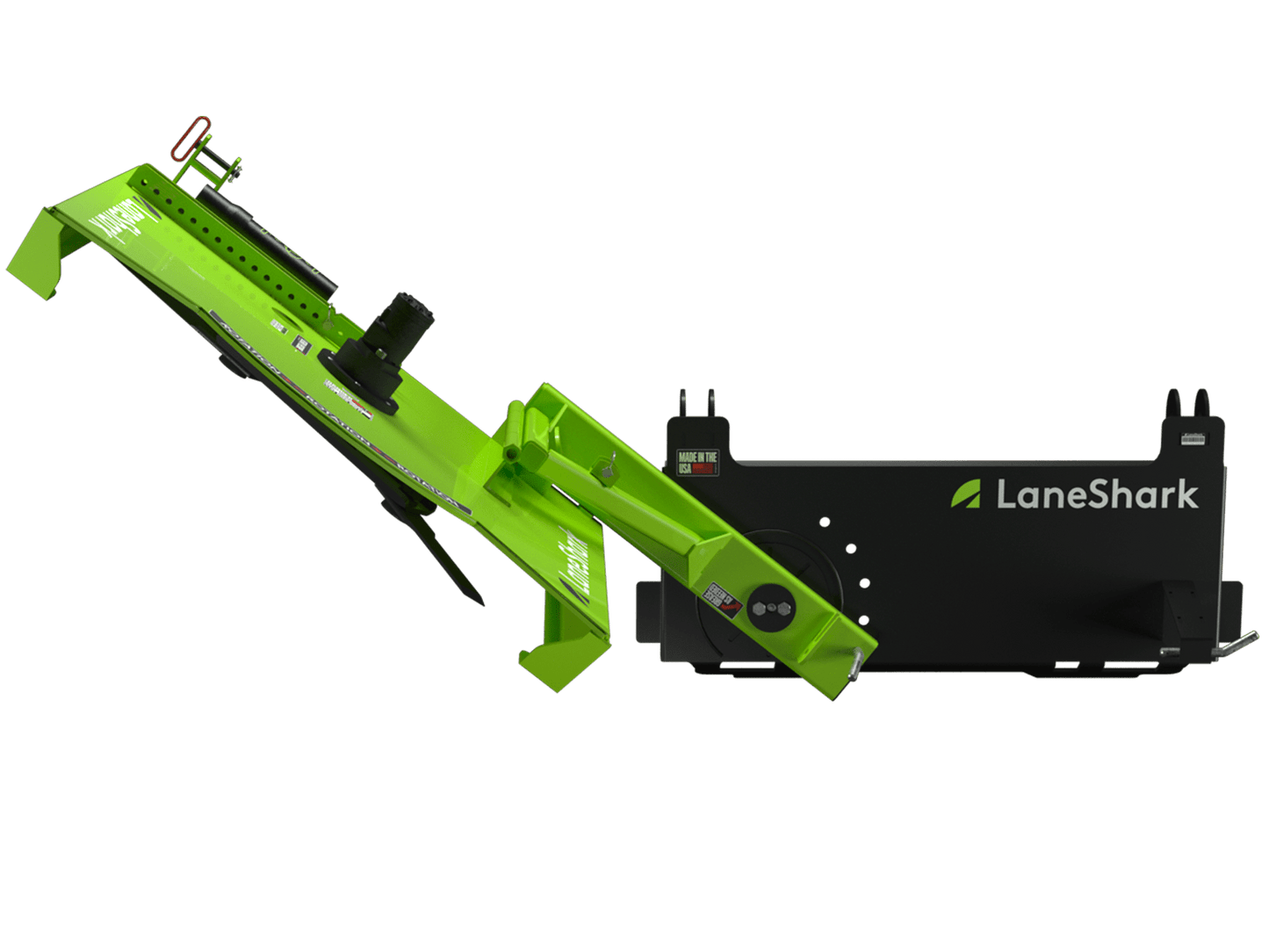

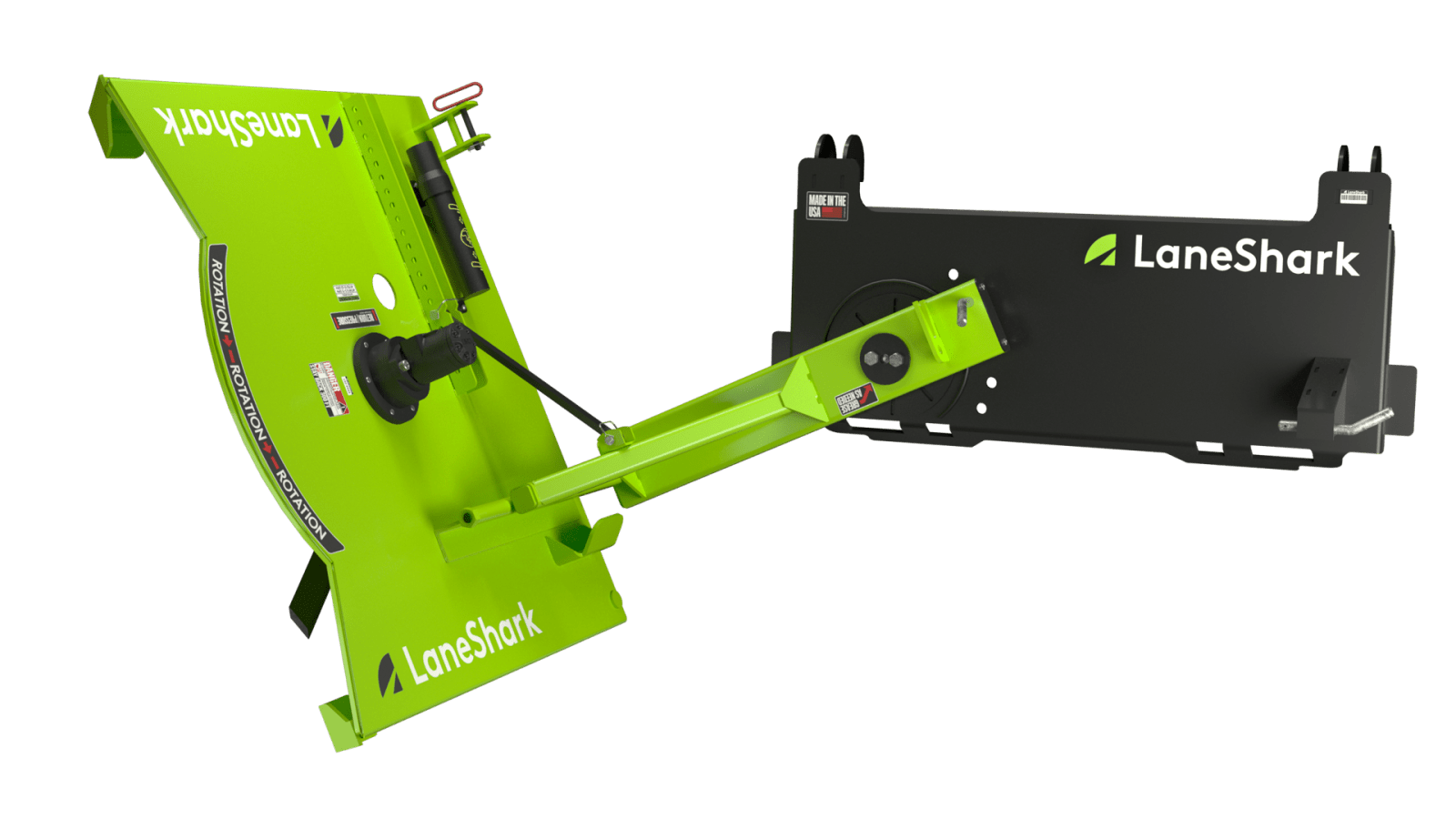

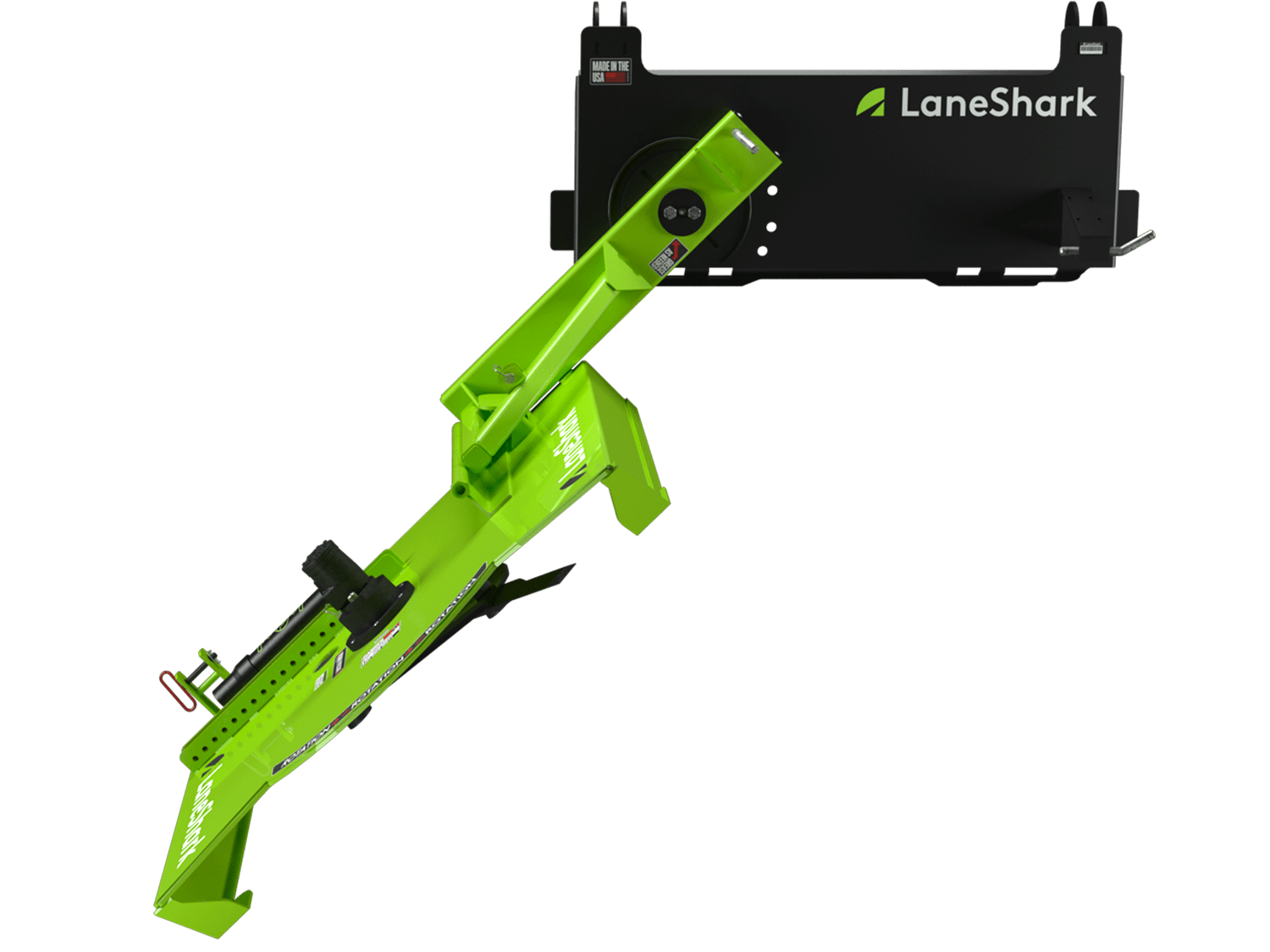

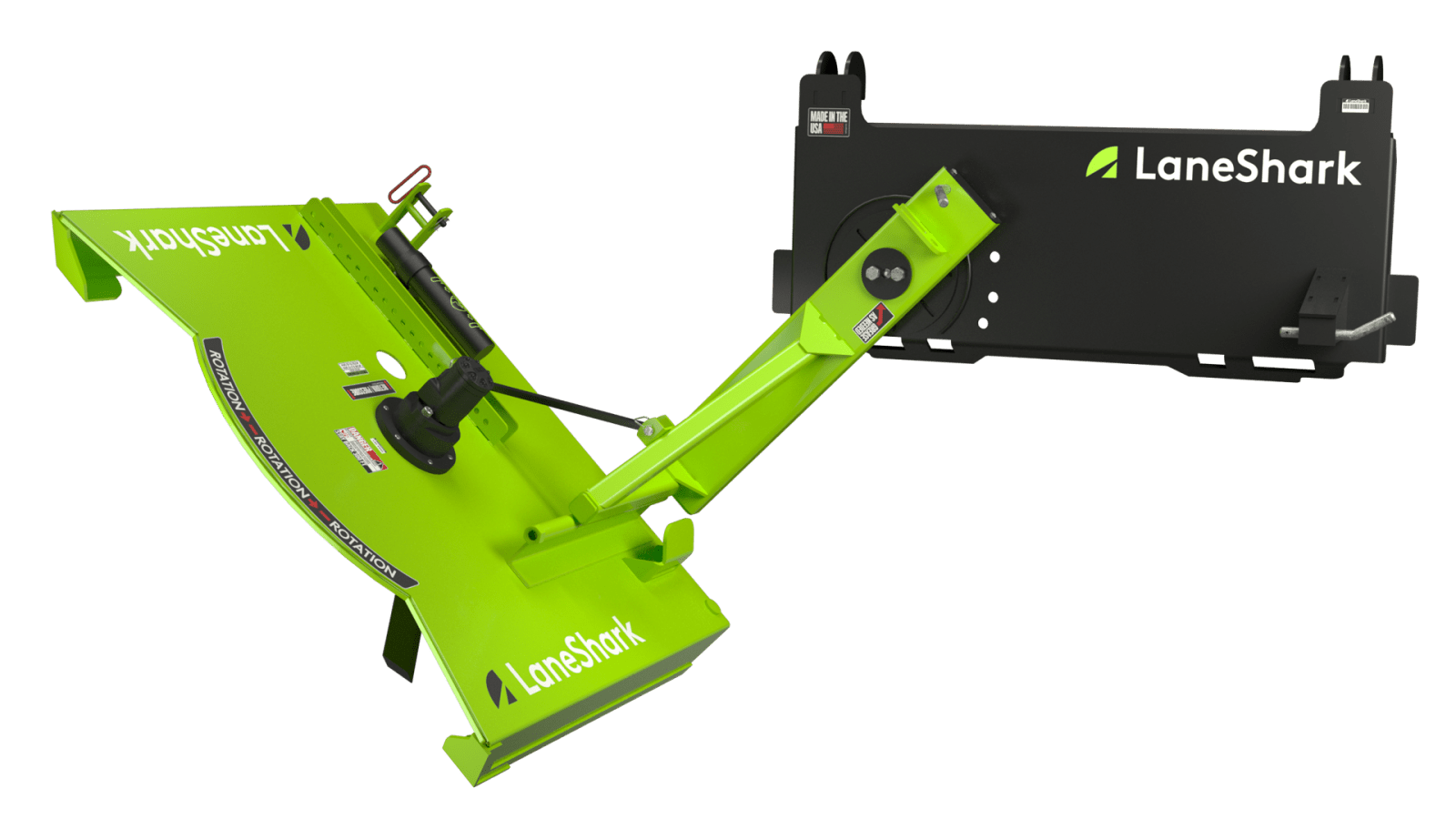

- Easily cuts up to 2-3” diameter limbs, brush, saplings, and underbrush. Cutting width is 44". The LS4 has a wide range of cutting positions that allow it to cut vertically, offset, directly in front (level), or 25°, 35°, & 45° in the vertical and offset positions

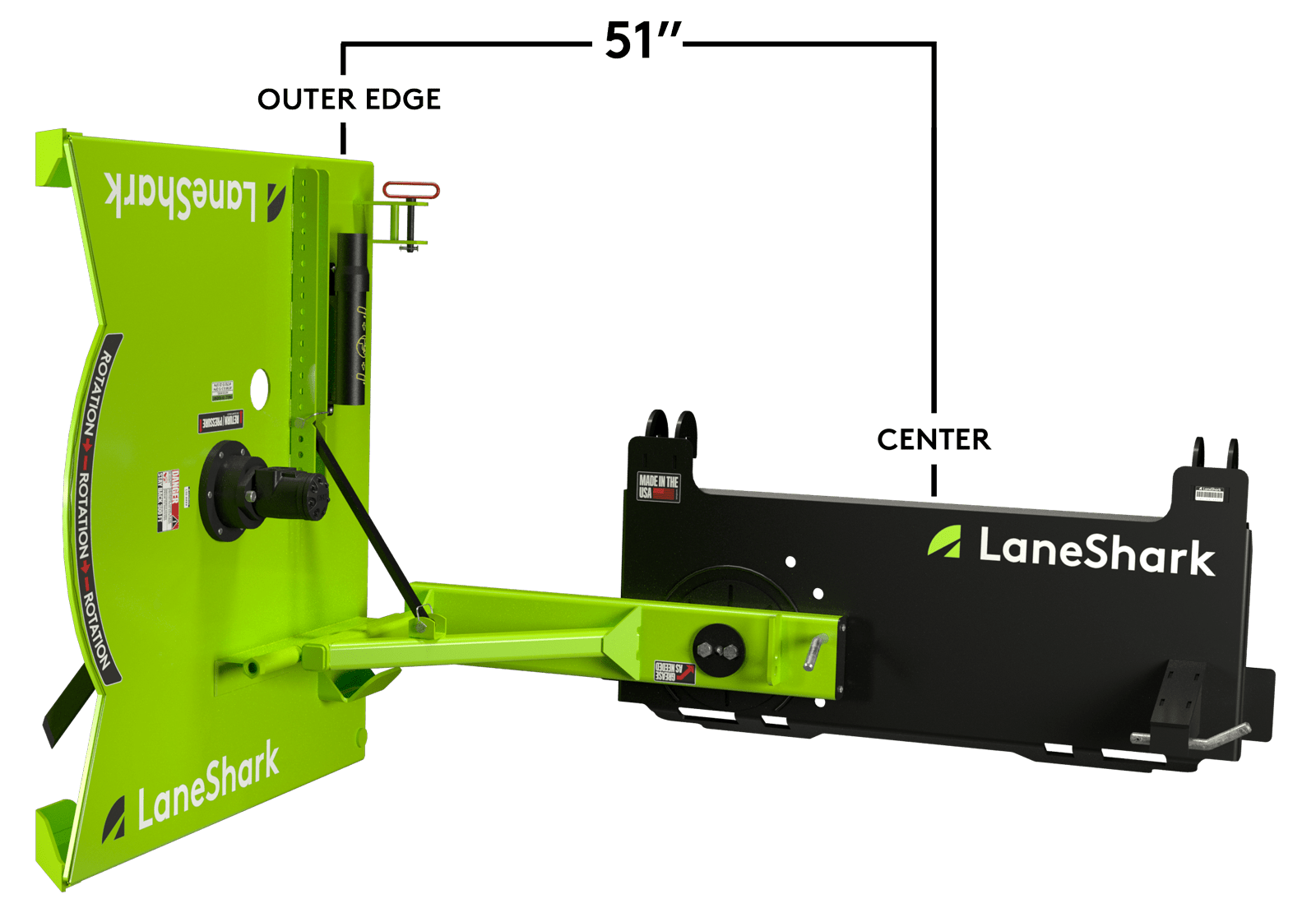

- Multi-position adjustment rail for added versatility and an extra foot of vertical extension

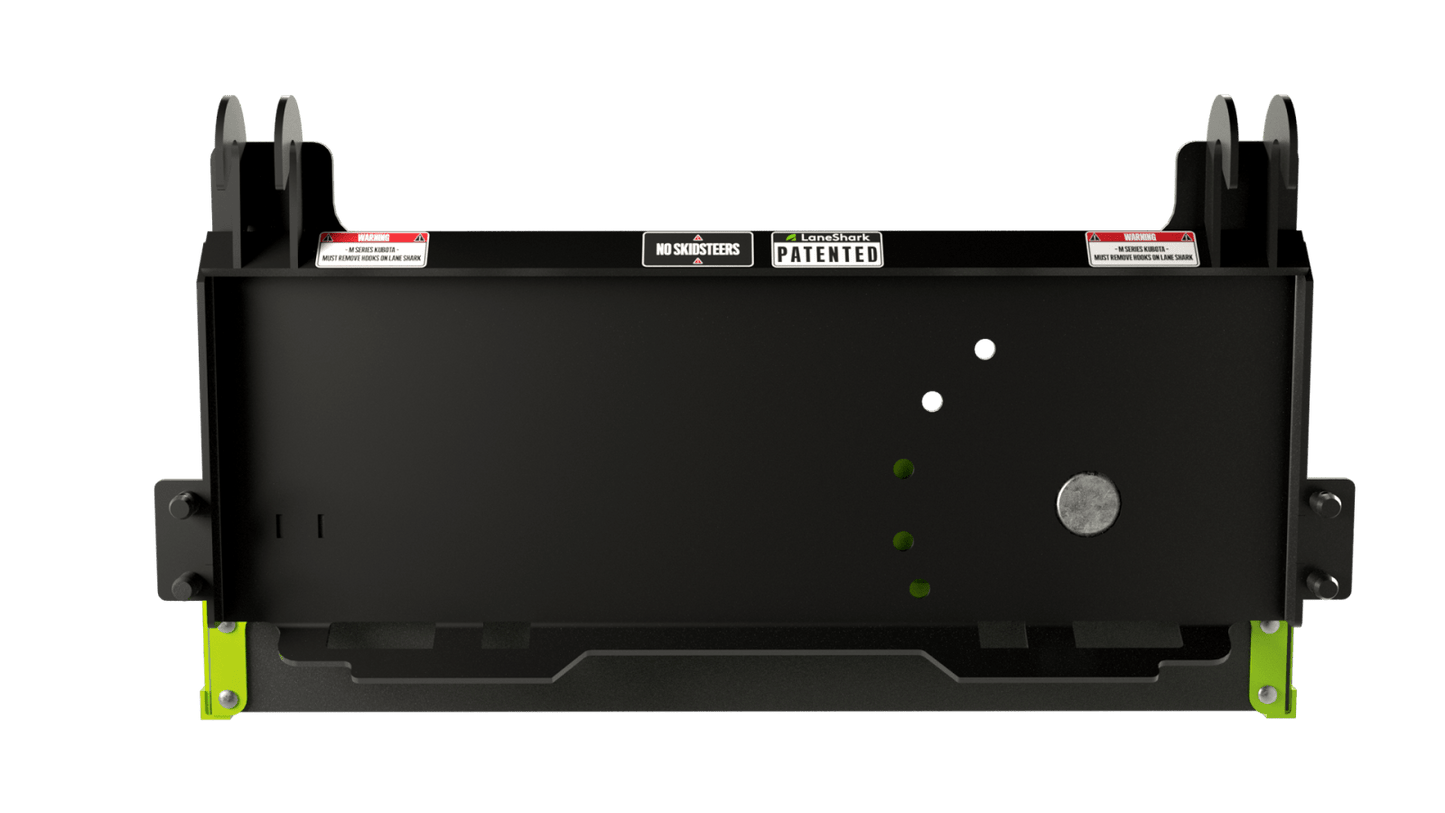

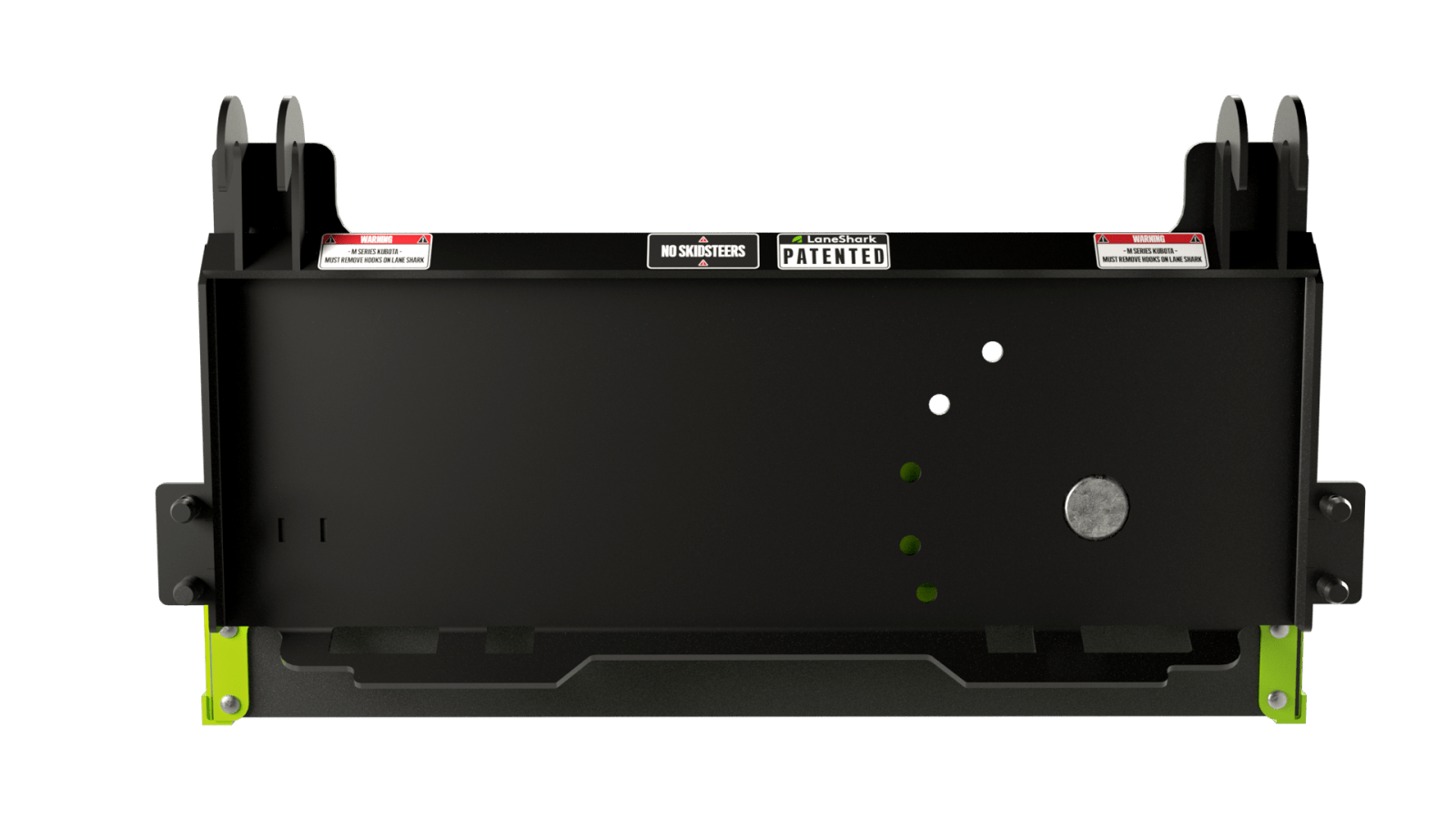

- The Lane Shark LS4 attaches to the front of any FEL tractor with a SSQA or JD Hook & Pin-Style attachment system. There are adapters available to fit most other applications sold separately.
- Rear rubber skirt and skid shoes for a smoother cutting process
- The Lane Shark LS4 weighs just under 450 lbs.
- When purchasing the Lane Shark brush cutter, you will receive a unit equipped with #10 ORB (O-ring Boss) inlets. When using ORB, a minimum inside diameter of 1/2” is required.
NOT COMPATIBLE WITH SKID STEERS
-
LS4: Compatibility Specifications
- Hydraulic implement flow rate 8.5gpm to 14.9gpm - Standard motor
- Hydraulic implement flow rate 15gpm to 20gpm - High capacity motor (Special Order Only)
- Hydraulic rear remotes* or third function. Must have a WR Long C-Flow component OR return direct to sump. (CANNOT RETURN THROUGH AUXILIARY HYDRAULICS)
- We do not recommend rear remote plumbing as some tractors may lose loader priority
- NOT COMPATIBLE WITH DIVERTER VALVES
- Minimum dry tractor weight of 3000 lbs
- Minimum tractor width of 55 inches
- Certified roll over protection system
- For stabilization while operating the Lane Shark, fill rear tires of your tractor with water for use as a ballast, as well as additional weight on rear. ie: box blade, or rotary cutter.
-
